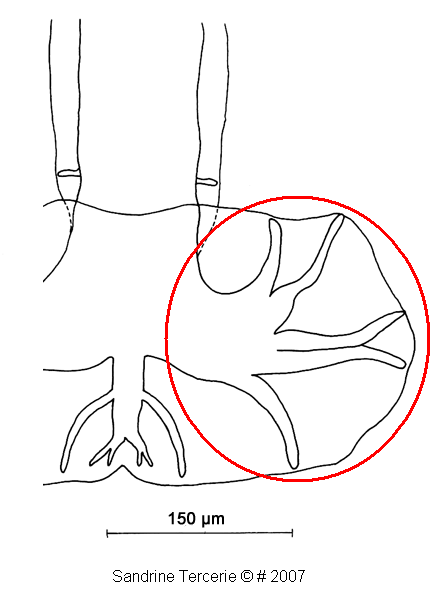

Descripteur : Diagram of rays 2 to 6 (left lobe)
It is here about the diagram of the left lobe, if the right lobe presents a different diagram.

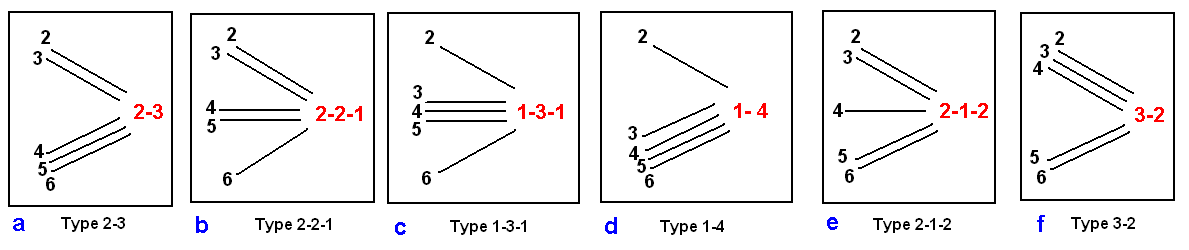

Five principal types of grouping exist
Type 2-1-2; rays 2 -3 and rays 5 - 6 grouped, ray 4 isolated
Type 1-3-1; ray 2 isolated, rays 3 to 5 grouped, and ray 6 isolated
Type 2-2-1; rays 2 - 3 and rays 4 - 5 grouped, ray 6 isolated
Type 3-2; rays 2 to 4 and rays 5 - 6 grouped
Type 2-3; rays 2 -3 and rays 4 to 6 grouped
Type 1-4; rays 2 isolated, rays 3 to 6 grouped
Nevertheless, these types are arbitrary and intermediate diagrams can be observed.
+
- Type 2-3
-

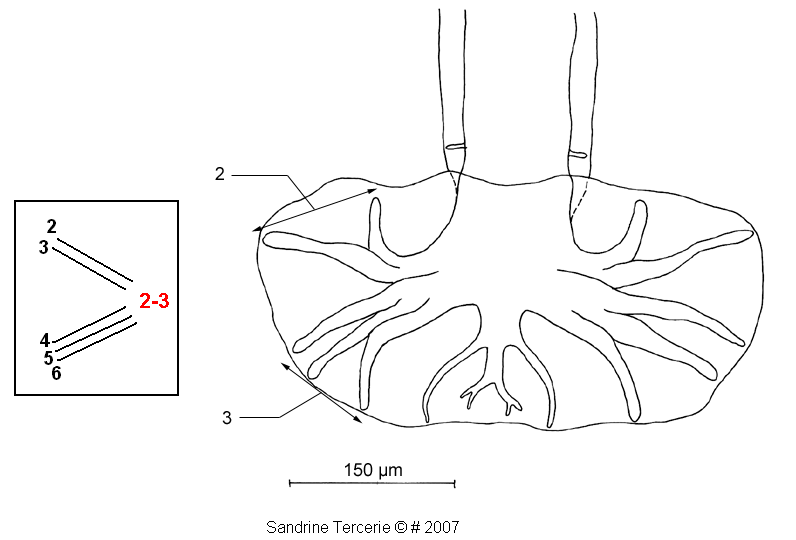

Type 2-3: Rays 2 - 3 grouped and rays 4 -6 grouped
+ - Type 2-2-1
-

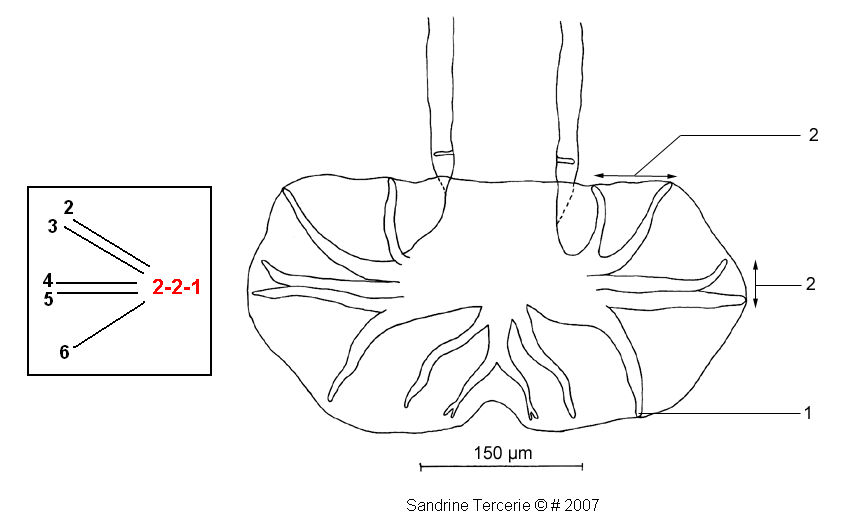

Type 2-2-1: rays 2 - 3 grouped, rays 4 -5 grouped and ray 6 isolated
+ - Type 1-3-1
-

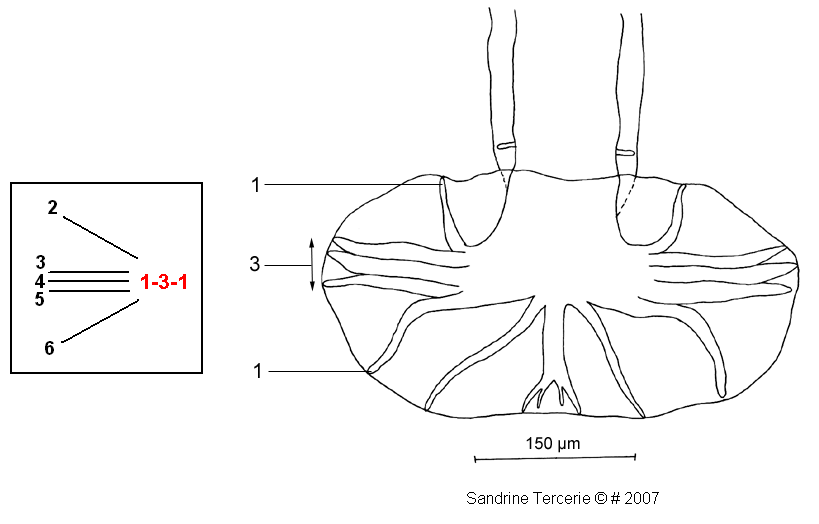

Type 1-3-1: ray 2 isolated, rays 3- 5 grouped and ray 6 isolated
+ - Type 1-4
-
Type 1-4: ray 2 isolated and rays 3 - 6grouped
+ - Type 2-1-2
-
Type 2-1-2: rays 2 - 3 grouped, ray 4 isolated, rays 5 - 6 grouped
+ - Type 3-2
-
Type 3-2: rays 2 - 3 grouped, rays 4 - 6 grouped
+
